FAS S.P. 607 or 602 magazine refurbishing for fitting a 6-shot follower

Post by Crete »

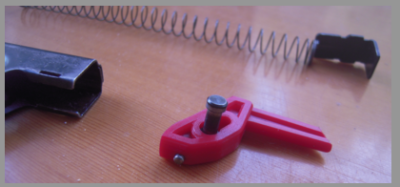

Here is how I refurbished the FAS magazine for fitting a 6-shot follower.

The jig and the carpenter's vice helped enormously, as I would not be able to take the mag apart and put it together without them. The jig was made using nails and a screw as well as .22 LR empties that allowed the magazine to roll in-and-out a secure position between them without damage, or risking being scratched.
A small sharp screwdriver, a short sharp knife, pliers and a polymer-tipped hammer are also handy for the job.

In fact it is a lot easier than it appears, as the spring holder at the bottom is released calmly when the lips are parted a bit. The hammer can be used instead of the pliers for returning the lips to their original angle.

Pics below.

Many thanks for your help.
Attachments
Screenshot 2023-11-12 at 1.37.37 PM.png
Screenshot 2023-11-12 at 1.37.37 PM.png (71.61 KiB) Viewed 18117 times
Screenshot 2023-11-12 at 1.35.55 PM.png
Screenshot 2023-11-12 at 1.35.55 PM.png (97.72 KiB) Viewed 18117 times
Screenshot 2023-11-12 at 1.32.54 PM.png
Screenshot 2023-11-12 at 1.31.07 PM.png
Screenshot 2023-11-12 at 1.31.07 PM.png (87.5 KiB) Viewed 18117 times
